How much better is HD CCTV?


If you zoom HD CCTV cameras in so they cover the same area as a standard definition camera you will get a clearer image. Pixel density increases and the image improves.

If you maintain the same pixel density as the standard definition then an HD camera will have a longer range and be able to film a wider area. In crude terms, a 1080P camera will be able to capture the same detail as a standard resolution camera at twice the distance.

With standard definition equipment, you can film about 3.5 metres wide and identify someone. This increases to about 8 metres when using 1080P cameras. The reason for the increase is more than twice that of HD 1080P records in 16:9 aspect widescreen and standard D1 resolution records in 4:3 aspect ratio.

The following images show improvements achieved with the HD camera zoomed in to cover roughly the same area as a standard definition camera.

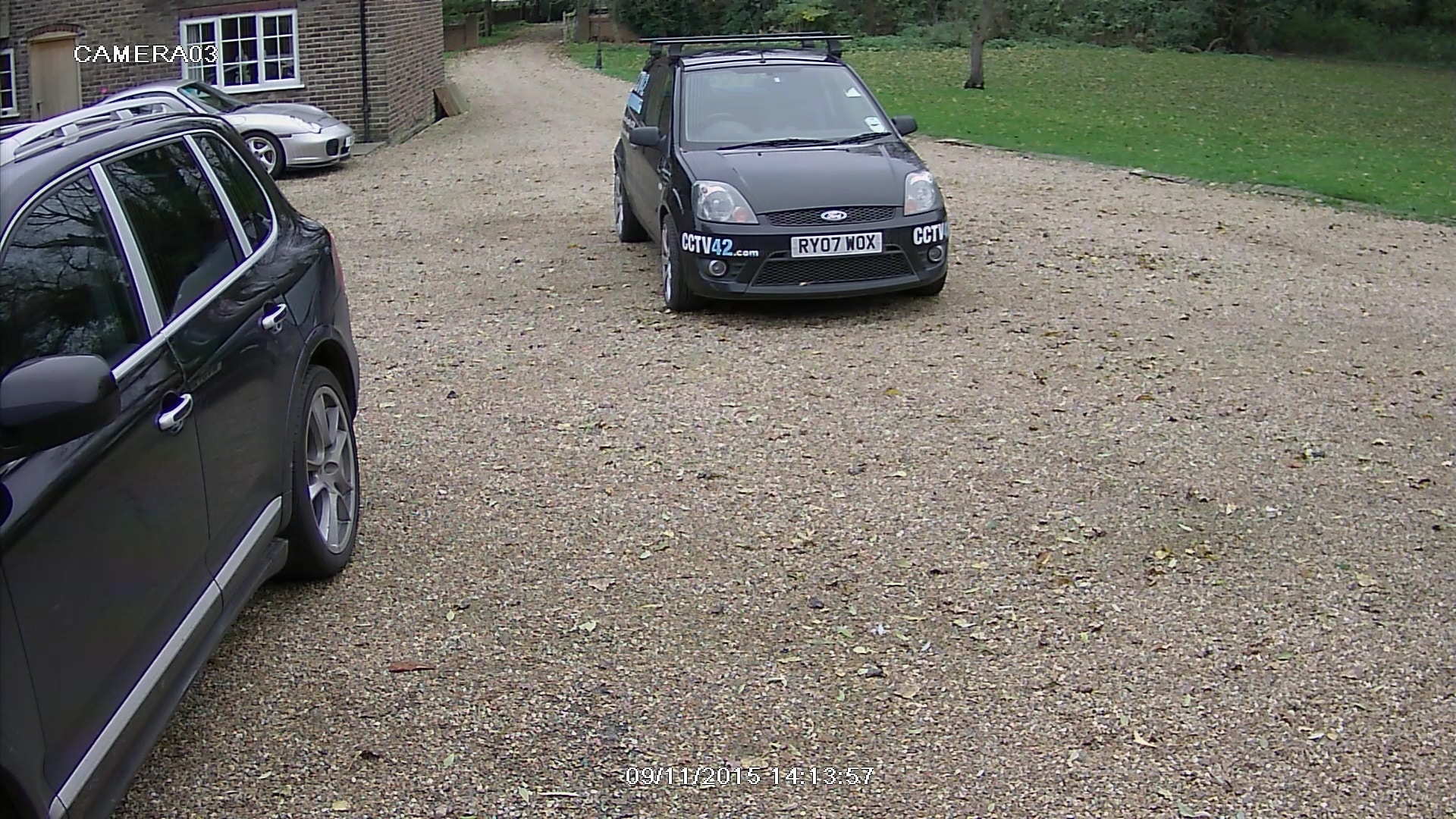

HD 1080P image (click to enlarge).

Upgrade to HD CCTV 1080P

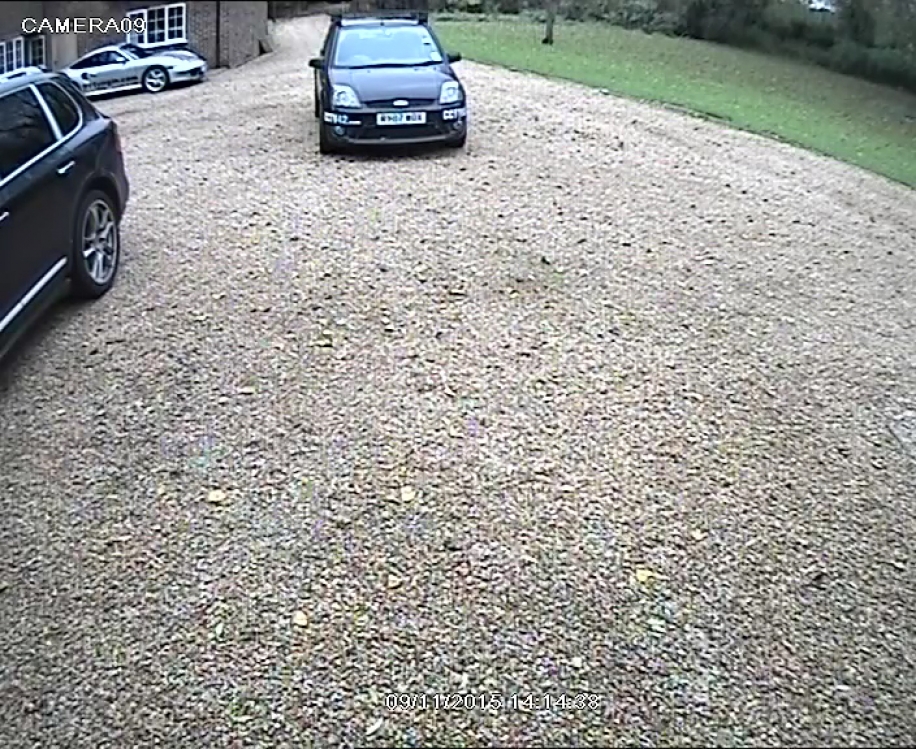

Standard D1 resolution (click to enlarge)

Upgrade to HD CCTV D1
